  SYH series three dimensional motion mixer

Name:   SYH series three dimensional motion mixer
Introduction:

It is widely used in pharmaceutical, chemical, food, light industry and scientific research institute.

It has advantages of fine mixing effect, high evenness, maximum loading capacity is 0.9; special design, no dead angle, no pollution on material



Uses:

It is widely used in pharmaceutical, chemical, food, light industry and scientific research institute.

Features

Fine mixing effect, high evenness, maximum loading capacity is 0.9; special design, no dead angle, no pollution on material

Mixing machine



Technical parameters:

Model SYH-5 SYH-15 SYH-50 SYH-100 SYH-200 SYH-400 SYH-600 SYH-800 SYH-1000 SYH-1200 SYH-1500
volume of charging barrel
(L)
5 15 50 100 200 400 600 800 1000 1200 1500
maximum loading volume
(L)
4 12 40 80 160 320 480 640 800 960 1200
maximum weight
(kg)
2.4 7.5 25 50 100 200 300 400 600 600 720
rotation speed of principle axle
(r/min)
30-15 0-8
motor power
(kw)
0.25 0.37 1.1 1.5 2.2 4 5.5 7.5 7.5 11 11

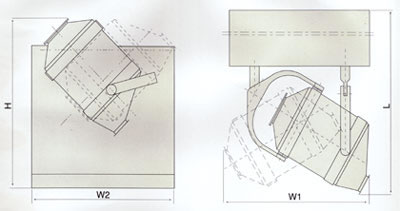

size
(mm)
600×1000
×1000
700×1000
×700
1000×1400
×1200
1200×1700
×1500
1400×1800
×1600
1800×2100
×2250
1900×2100
×2250
2200×2400
×2300
2250×2600
×2600
2350×2700
×2600
2500×2800
×2800
Weight
(kg)
150 200 300 500 800 1200 1500 2000 2500 3000 3500
