Brief introduction:
.jpg)
LPG series high-speed centrifugal spray dryer is a kind of drying equipment suitable for emulsion, suspension, paste and solution.
Scope of application: polymer and resin; dyes and pigment; ceramics and glass; rust remover and vermifuge; carbohydrate and dairy products; detergent and surface active agent; fertilizer; organics and inorganics
Features:
High drying speed;
Suitable for heat sensitive material;
Simple production process;
Convenient for control;
Fine dispersing property, liquidity and solubility;
.jpg)
.jpg)

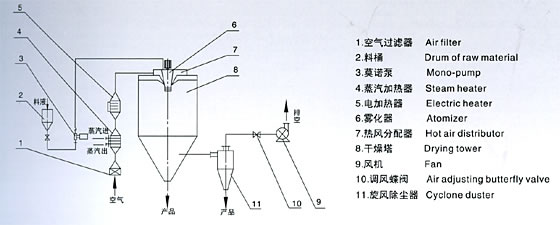

Process flow diagram:
.jpg)

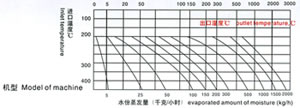

Water evaporation curve:
.jpg)
Technical parameters:
|
Item\Index\Model
|
5
|
25
|
50
|
150
|
200-2000
|
|
inlet temperature
|
140-350自控
|
|
outlet temperature
|
80-90
|
|
maximum moisture evaporation capacity
|
5
|
25
|
50
|
150
|
200-2000
|
|
drive mode of centrifugal atomizing spray head
|
pneumatic transmission
|
mechanical transmission
|
|
maximum speed of revolution
|
25000
|
18000
|
18000
|
15000
|
8000-15000
|
|
diameter of spray disk
|
50
|
120
|
120
|
150
|
180-240
|
|
heat source
|
electric
|
steam and electricity
|
steam and electricity, fuel oil, coal gas, airheater
|
|
maximum electrical heating power
|
9
|
36
|
72
|
99
|
|
|
external dimension(L×W×H)
|
1×0.93×2.2
|
3×2.7×4.26
|
3.5×3.5×4.8
|
5.5×4×7
|
ccording to real condition
|
|
dry power recovery
|
≥95
|
LPG series high-speed centrifugal spray dryer
