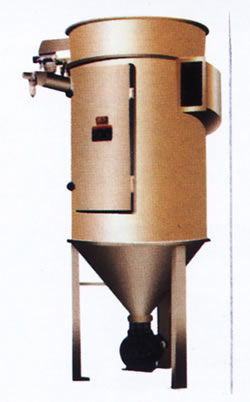

  Pulsed jet cloth filter

Name:   Pulsed jet cloth filter
Introduction:

widely applied in metallurgy, casting, mineral, chemical, medical, feed, construction and grain processing fields









Scope of application:

widely applied in metallurgy, casting, mineral, chemical, medical, feed, construction and grain processing fields

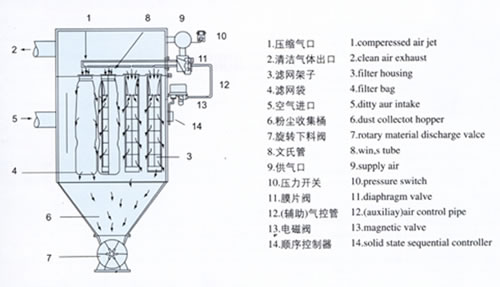

Structural representation:

Technical parameters:

Index\Model MC24 MC36 MC48 MC60 MC72 MC84 MC96 MC120
filtering area (m2) 18 27 36 45 54 63 72 90
number of filter bag 24 36 48 60 72 84 96 120
velocity of filtering(m/min) 2-4
blast capacity of filteringm3/min) 2160-4300 3250-6480 4320-8630 5400-10800 6450-12900 7500-15100 8650-17300 10800 -20800
maximum boundary dimensionmm length 1025 1425 1820 2225 2625 3025 3585 4385
wdith x height 1678x3660
cleaning installation quantity of pulse valve 4 6 8 10 12 14 16 20
compressed airconsumptionm3/min 0.07-0.03 0.11-0.40 0.15-0.50 0.18-0.60 0.22-0.60 0.25-0.90 0.29-0.90 0.37-0.90
compressed airpressurekg/cm3 0.5-0.8
